ULA ACES ESPA cost engineering and business model & Terrestrial & Cislunar Exploration Technologys ESOP

November 15, 2017

The OPAG Ice Giant study group has 13 science instruments and avionics/comnav cost engineered at $700 million this comes out to $54 million per instrument.Our business model would be to divide up this cost in 3 to 4 ways.Dividing up the instruments 4 ways places about 3 instruments in each group of cost engineered funding payment modes.

(A)(1) mode one is the NASA Salmon instrument flight opportunity where 3 instruments fly for 1/4th the total mission costs or about $250 Million.This would be competitively put out through a salmon AO.The question would be wich instruments the NASA customer want to use for this process? All 13 instruments and three are chosen or NASA picks out three instruments for the AO bid process?$250 Million mostly upfront in early phases of the spacecraft build over 5 years before launch.$50 Million per year.This could also be an in-kind Salmon purchased instruments that pay a rideshare fee or $17 Million per year per instrument.

(A)(2) NASA data purchase of $250 Million payable over the life of the Mission of 15 years from three additional instruments, $17 Million per year over 15 years

(A)(3) The International community up for three to four instruments equipment in-kind with a rideshare fee payable to us equivalent to the costs of the launch vehicle and ACES  at 1/4th and operations costs plus a profit.So an in-kind donation of $250 million for science payloads

(A)(4) Some instruments are within reach of private foundations and university indeed some instruments might be cheaper than University funded telescopes.Three smaller instruments like the ice giant study groups proposed Magnatometer could be in-kind equipment with a rideshare fee

Terrestrial & Cislunar Exploration technologies borrow $1.3 Billion that accrues to a Leveraged ESOP.Deductions are made to this sum for in-kind equipment transferred to the project.As many as 6 instruments might be in-kind so between $300 to $400 Million need not be borrowed by the leveraged ESOP.In the case of the 3 instruments that we are selling data with the ESOP company would purchase these along with the ULA ACES spacecraft.What instrument has the most data values? would the customer be willing to pay for that additional value? To us, the most valuable instruments would be the science imaging cameras.The ESOP company would hire our own PI for these, however, we would like to point out that idea from previous posts on this blog that those PI’s would be co-employees with the ESOP and their home institutions.As the ESOP debt is paid down the science investigators and engineers would vest in the success of the ESOP pension plan

Our goal would be to use profits earned after ESOP debt retirement and employee pension payouts to invest in the serial production of more ACES/ESPA spacecraft and those instruments we have purchased, ICE giant spacecraft should be able to share the same 13 instruments at Neptune Uranus and a return to Saturn ditto Jupiter flyby science in route

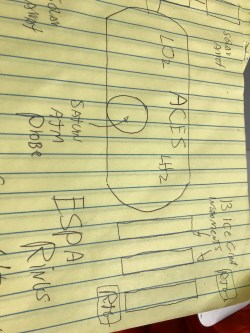

Last week we wrote about a ULA ACES with ESPA rings both forward and aft of the ACES the aft ESPA ring held connections for an ACES solar array that powers a onboard SEP engine.The Xenon is kept cryogenic to save the weight of the propellant tank mass and is cryocooled by the ACES LH2 After 5 AU the solar array/ESPA ring detaches.In the case of Saturn, we keep this solar array ring so that some RTGs can descend to Titan with an ESPA ring in a floating HIAD on a Titan sea.Hopefully, the very long descent by parachute would allow the HIAD to cool 🙂 The HIAD is our flotation mechanism and the ESPA ring provides the structure to the landed instruments.Perhaps a modest submarine on a tether could be deployed and retrieved

Year 1                        Year 2                 Year 3

$17 Million

$17 Million           in progress………….

$17 Million

$17 Million

In-kind furnished instruments with rideshare fee







.
