LNG/Water Maritime tanker Composite Rocket Fuel Tank derived Moss tank

Hypothesis; (A)The Maritime LNG and water trade could benefit from advances   in both Methane rocket propulsion launch vehicles and composite tanks and possibly the launch vehicles industry might learn from the maritime LNG water transport trade.(B) The launch industry can learn from accident and safety studies by the LNG maritime trade in t case of arbitrarily large Methane Powered extended launch vehicles( ALMPELV’s)

In the case NASA/Air force launch sites environmental impact studies for large Methane powered launch vehicles might be minimal but new commercial sites environmental impact studies might very well be informed by the DOE LNG safety research report to congress in 2012 at the bottom of this page.





Options,

several very large composite maritime Moss tanks

http://www.engineering.com/DesignerEdge/DesignerEdgeArticles/ArticleID/7394/NASA-Boeing-Partner-on-Composite-Rocket-Fuel-Tank.aspx



http://www.nasa.gov/centers/marshall/news/news/releases/2014/14-043.html#.VJrS_14AKB





Moss Maritime General Brochure

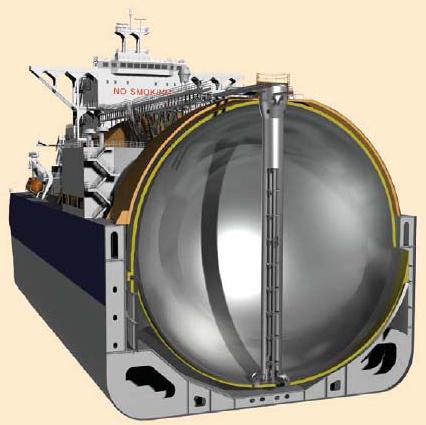

LNG-Moss-tanks

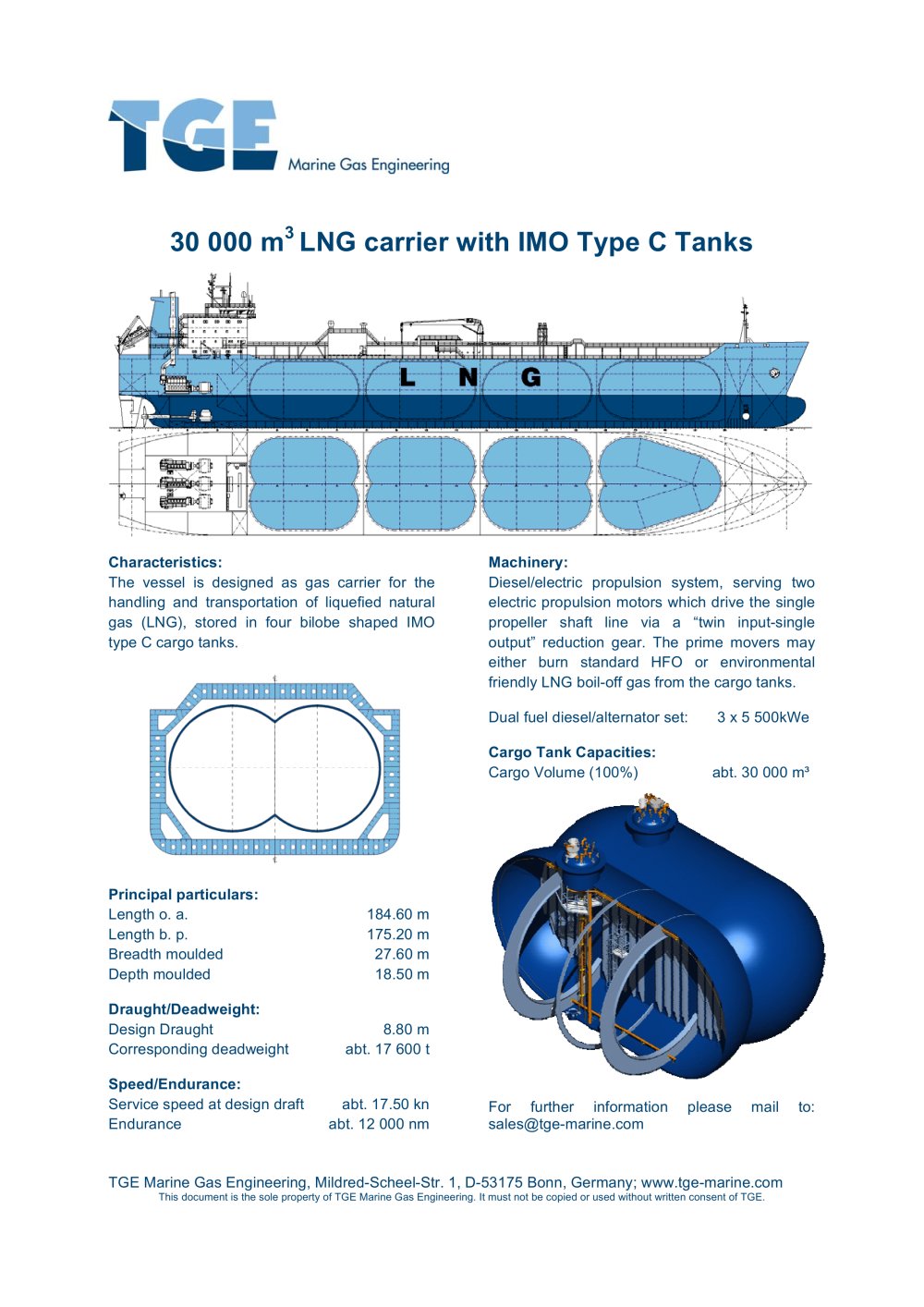

30-000-m3-lng-carrier-imo-type-c-tanks-20024_1b

image_01





http://www.ship-technology.com/projects/grandelena/



8-8-Henry_Chung



http://www.nwsssc.com/fleet/ship-technical-information/moss-rosenberg



  • Poor fit in ship’s hull – ball in a box. Horizontal end caps from composite rocket tank design?
  • High windage on ships – slow speed manoeuvrability difficult. Horizontal end caps from composite rocket tank design?
  • Tank temperatures must be carefully controlled (equatorial tank temperature must be < -119C for loading).
  • Cool-down rate usually about –6C per hour.Cool down for composite rocket tank?
  • Wall thickness varies between 28-32mm at Poles and 160mm at equatorial ring. For a composite tank?
  • Tank weight about 800 tonnes.Weight for  composite rocket tank is half of this?
  • Superstructure has to be high to see over tanks – airdraft becomes limiting factor at some ports.
  • Horizontal end caps from composite rocket tank design? With many smaller 5 to 10 Meter tanks RO RO; commonly with launch vehicle propellant tanks?

Some smaller rocket derived LNG tanks,    20130013009 and 20130012938  an also

DOE_LNG_Safety_Research_Report_To_Congre

Message from the Assistant Secretary for Fossil
Energy

May 2012

• The Honorable Joseph R. Biden, Jr.
President of the Senate
• The Honorable John Boehner
Speaker of the House of Representatives
• The Honorable Daniel K. Inouye
Chairman, Senate Committee on Appropriations
• The Honorable Thad Cochran
Vice Chairman, Senate Committee on Appropriations
• The Honorable Dianne Feinstein
Chairman, Senate Subcommittee on Energy and Water Development
Committee on Appropriations
• The Honorable Lamar Alexander,Ranking Member, Senate Subcommittee on Energy and Water Development
Committee on Appropriations

• The Honorable Harold Rogers
Chairman, House Committee on Appropriations
• The Honorable Norm Dicks
Ranking Member, House Committee on Appropriations
• The Honorable Rodney P. Frelinghuysen
Chairman, House Subcommittee on Energy and Water Development
Committee on Appropriations
• The Honorable Pete Visclosky
Ranking Member, House Subcommittee on Energy and Water Development
Committee on Appropriations



LIQUEFIED NATURAL GAS SAFETY RESEARCH



LNG Cargo Tank Breach and Spill Analyses



LNG Cargo Capacity 140,000 m3 260,000 m3. Much larger than SLS or Methane powered SpaceX or ULA vehicles



Table 2. LNG Cargo Tank Breach Sizes Considered
Type Breach Area Breach Dimension
Very Small 0.005 m2 (0.25 ft x 0.25 ft)
Small 0.5 m2 (2.3 ft x 2.3 ft)
Medium 2-3 m2 (5.0 ft x 5.0 ft)
Large 5 m2 (7.3 ft x 7.3 ft)
Very Large 15 m2 (12.7 ft x 12.7 ft)



Large LNG Pool Fire Experimental Results

• Determining the Surface Emissive Power (SEP) of large LNG pool fires;
• Determining the fuel vaporization rate of LNG fires on water; and
• Determining the flame height to diameter ratios for large LNG pool fires.



Figure 5. Large-scale LNG pool fire test site





Table 3. Large LNG Pool Fire Data
Test
Volume
Discharged
(gallons)
Avg.
Flame
Height
(m)
Flame
Diameter
(m)
Wind
Speed
(m/s)
Flame
Tilt
(degrees)
Vap.
Rate
(kg/m2
s)
Surface
Emissive
Power
(kW/m2
)
(narrow/wide)
1 15,000 70 20.7 4.8 50 0.15 238/277
2 52,000 146 56
(83 m
spill)
1.6 Negligible Not
obtained
316/286

arbitrarily large methane powered  extended launch vehicles    ALMPLEV’s
